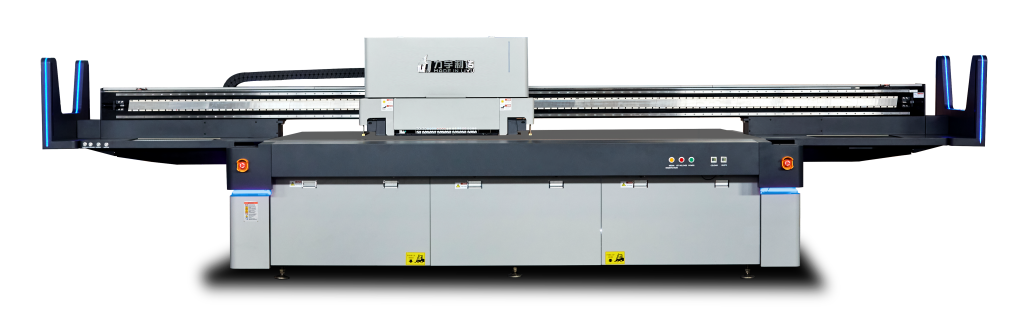

Technical Specifications
Print technology: DOD
Type of print head: Ricoh G6/KM9888H
Maximum media size: 3050 mm*2025 mm
Printing mode of the print head: 1 head for 2 colors / 1 head for 1 color
Environmental requirements: Temperature 15℃ ~ 30℃; relative humidity 40% ~ 80%
Efficiency: 100m²/h ~ 350 m²/h
Maximum print height: ≤10 cm
Machine weight: 2100 kg
Features
1. Adopts metal grating and triple linear motors on X/Y axes for low noise, high precision and stable running.
2. Dual workstations with dual handles support alternate processing to boost efficiency greatly.
3. Front & rear pneumatic positioning pins ensure accurate positioning for easy printing.
4. Independent air flotation enables easy loading and unloading of large-size materials.
5. Smart ink supply system delivers steady ink flow for high-precision UV printing.
6. Upgraded LED curing supports seamless switch of multiple printing modes for diverse uses.
7. New safety light curtain and optimized anti-collision printing ensure safer operation.
Technical Specifications
Print head quantity: 4-8
Droplet volume: 13Pl./6Pl.
Color scale: CMYK
Ink type: EcoSolvent
Drying device: Infrared fan heater
Printing width: 3200 mm
Printing resolution: 2880dpi
Printing speed: 260m/h
Machine size: 1150mm×5400mm×1650mm
Machine weight: 1450 kg

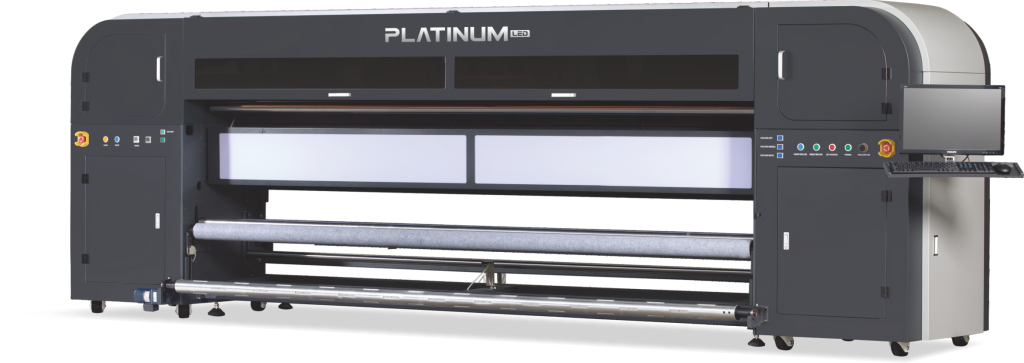

Features
1. Upgraded mechanical platform with 4 print head rows for faster printing speed.
2. THK silent rails and anti-deformation beam ensure quiet and stable high-speed operation.
3. Optimized LED cold curing realizes fast low-temp drying without material distortion.
4. Large integrated lightbox enables instant printing effect observation.
5. Built-in nearby control console for easier operation.
6. Three-roll tension rewinding ensures accurate feeding; linkage design fits soft & hard materials.
7. Dense wide pinch rollers deliver wrinkle-free material conveying.
8. Spreading roller design supports more materials for continuous printing.

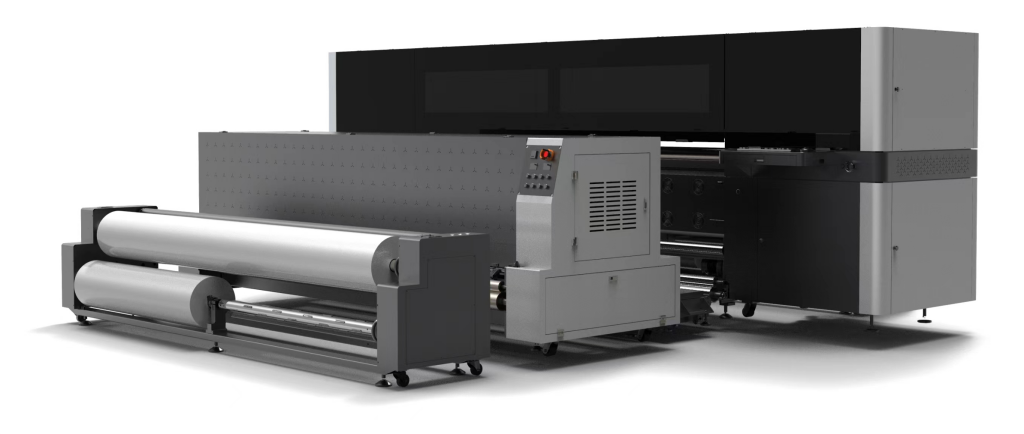

Technical Specifications
Print head quantity: 8-EB two rows
Droplet volume: 3.5Pl.
Printing width: 3300 mm
Printing resolution: 2400dpi
Machine size: 6200mm × 5500mm ×2115mm
Machine weight: 6500 kg
Environmental requirements Temperature: 150℃ ~ 300℃; relative humidity: 40% ~ 80%
Features
1. Industrial S3200-A3 print heads suit mass production needs.
2. Sleek upgraded build with fine workmanship, ideal for professional high-volume chemical fiber printing.
3. Pneumatic tension control fits diverse chemical fiber substrates.
4. Full steel CNC side frames secure stable parallel feeding and avoid material wrinkling.
5. Steel beams and linear motors ensure steady, long-lasting carriage movement.
6. New software enables rapid, stable data transfer for high-speed printing.
7. Auto carriage lift adapts to materials of varying thickness.
8. Variable-frequency adjustable adsorption system equipped.
9. Integrated intelligent servo controls synchronized feeding and winding.
10. Applications: flag cloth, curtains, cushions, stretch fabric, wall coverings, light box fabric, heat transfer paper, apparel and more.

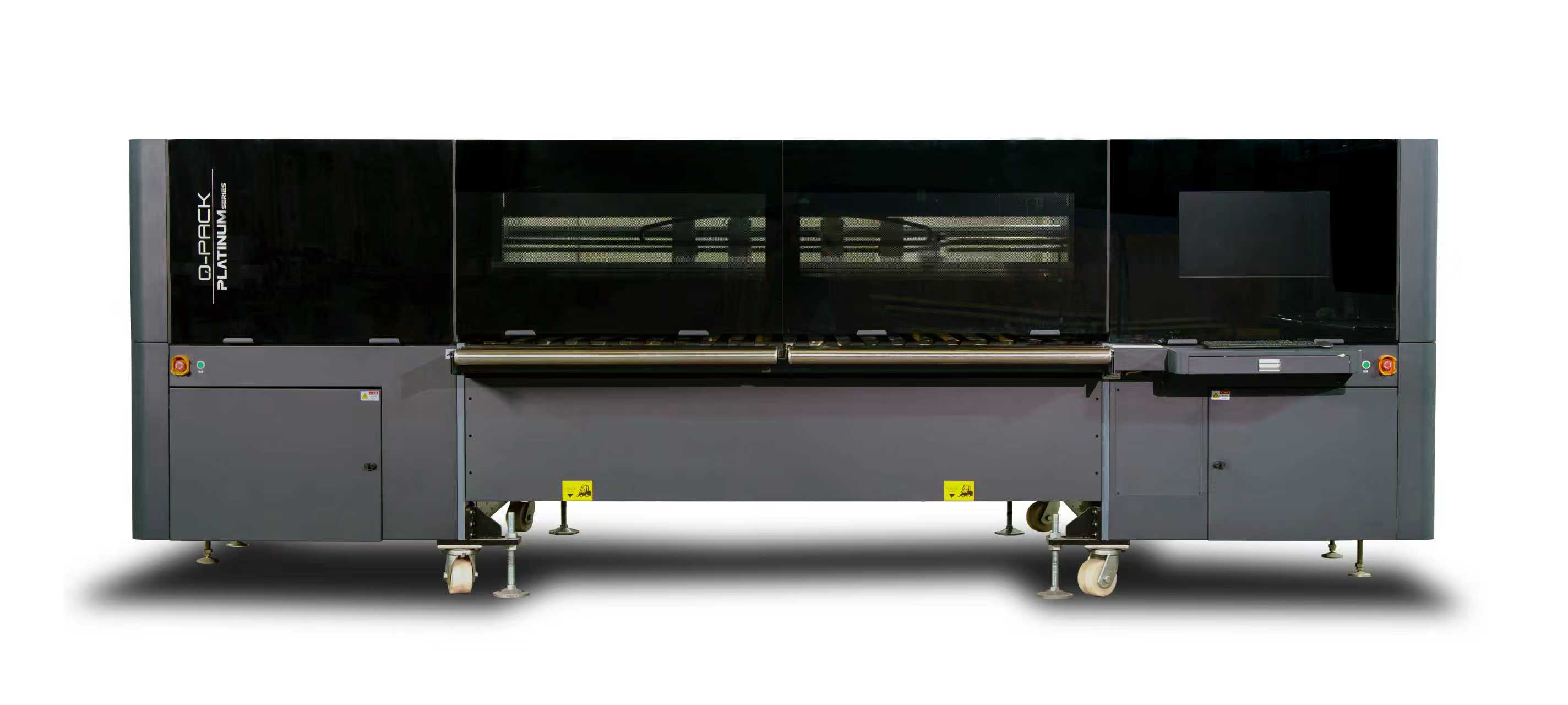

Technical Specifications
Type of print head: Epson i3200A1 Industrial-Grade Micro-Piezoelectric Print Head
Maximum width: 2500 mm direct printing mode: Maximum printing width: 520 mm; maximum paper feeding width: 2500 mm
Minimum width: 450 mm
Maximum length: 1500mm (customizable length, maximum 3500mm)
Minimum length: 420 mm
Fastest print mode and efficiency: Scanning mode: approximately 1000 m²/h; direct printing mode: 70 m/min
Material thickness: 2-15 mm
Equipment dimension: 5310×3900×1860m (L×W×H)
Air supply requirement: 8KG-12KG
Environmental requirements: Temperature: 20℃- 25℃; relative humidity: 50%–70%
Features
1. Smart one-touch control21.5-inch industrial touchscreen integrates 5 working steps, boosting efficiency by 70%. Easy to learn within 10 minutes.
2. Dual working modes freely switchScan mode: 2.5m ultra-wide for bulky & irregular cartons.Direct print mode: 520mm width, 70m/min speed, daily output over 100,000㎡.
3. High-precision stable driveLinear motor reaches ±0.1mm reposition accuracy, 40% speed improvement, supports nonstop round-the-clock operation.
4. All-steel adjustable platform22-zone adsorption design keeps 2-15mm corrugated boards flat, fast order conversion.Plate-free instant digital printingNo film or plate required. Supports variable barcode, QR code and pattern printing, lowers inventory and costs.
Supporting product

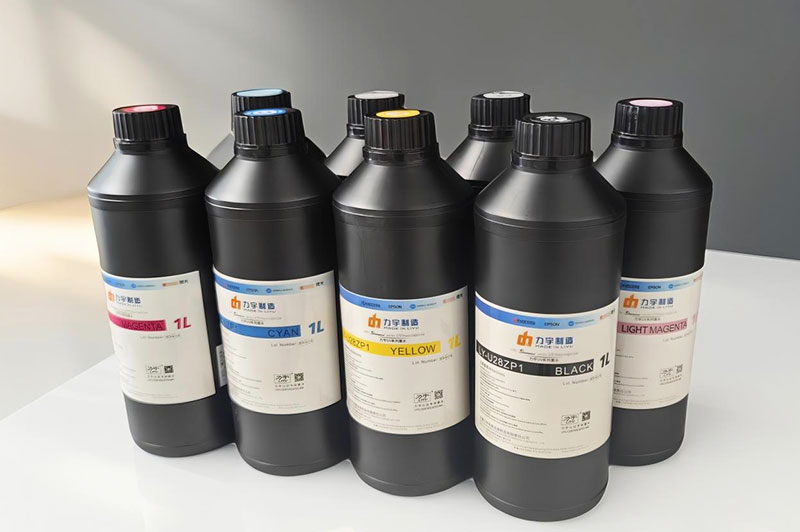

Ink
• Vivid Colors – Spot colors are accurate right out of the printer, with true-to-life color reproduction for vibrant and dynamic images.
• Exquisite Details – Precise ink droplet control ensure crisp lines and sharp small text without blurring.
• High-Speed Stability – Seamless continuous printing with no nozzle clogging or interruptions for maximum productivity.
• Eco-Friendly Assurance – Odorless, recyclable materials for worry-free green printing.
• Wide Compatibility – Custom inks tailored for paper, plastic, fabric, metal, and more, adapting to diverse substrates.
